Your trusted and reliable flash memory manufacturer

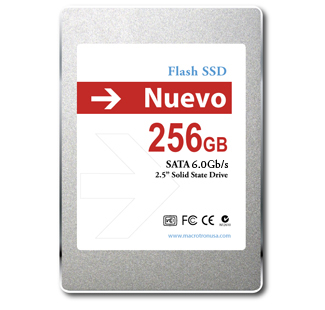

Macrotron NUEVO Solid State Drive features the most advanced SSD controller to enable superior performance speed at a cost-effective storage solution.
The NUEVO SSD is designed to fit the requirements of high speed, high capacity, and high endurance in the mainstream storage applications.
| Specifications | |
|---|---|
| Form Factor | 2.5" Standard |
| Capacity Range | 64GB - 256GB |
| Dimension | 69.85 x 100.20 x 9.50 (mm) |
| Interface | SATA III 6.0Gb/s compatible with SATA II 3.0Gb/s and SATA I 1.5Gb/s |
| NAND Flash | MLC |
| Power Supply | 5.0 Vcc +/- 5% |
| Package | Metal Housing |
| Operating Shock | 1500G |
| Operating Vibration | 16G |
| Operating Temperature | 0°C to +70°C |
| Support | S.M.A.R.T., Password Protection, NCQ Command, & TRIM Command |
| MTBF | 1,000,000 hours |
| Data Reliability | Built-in EDC/ECC function |
| Data Retention | 10 years |
| Wear Leveling Algor. | Patent Pending |
| Download | Nuevo Datasheet |
| SSD Testing: | Nuevo 64GB | Intel G2 80GB | C300 64GB |
|---|---|---|---|
| Read / Burst | Read / Burst | Read / Burst | |
| HD Tach 3.0.4.0 | 375.8 / 215 | 245.3 / 246.3 | 348.9 / 376.5 |
| MAX Read / Write | MAX Read / Write | MAX Read / Write | |
| ATTO | 368.809 / 115.682 | 272.246 / 86.313 | 380.759 / 79.517 |
| AS SSD | Read / Write | Read / Write | Read / Write |
| Sequential | 347.95 / 101.84 | 257.15 / 81.99 | 331.05 / 71.15 |
| 4K Random | 17.74 / 36.3 | 22.71 / 51.68 | 32.63 / 64.08 |
| 4K-64Thrd | 73.33 / 37.84 | 151.28 / 64.75 | 197.03 / 65.28 |
| Access Time (s) | 0.199 / 0.104 | 0.117 / 0.069 | 0.115 / 0.678 |
Notes: This testing was performed by a PC gaming company. All units are MB/s unless otherwise noted. All results average of 3 consecutive tests. Higher is Better.
