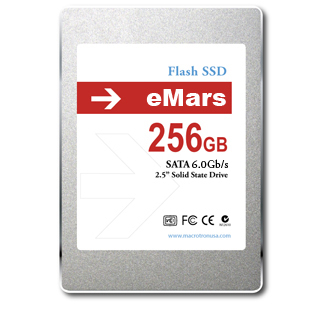

eMars series

The eMars series (MacroVault™ 87M6 series) SSD drives are high performance solutions for applications requiring performance balanced with cost.



Applications include video editing, Video-On-Demand, transactional processing, and high speed, fornt-end storage arrays, embedded systems, and power constrained applications.

Specifications MV-87M6-128G MV-87M6-256G MV-87M6-512G
Capacity 128GB 256GB 512GB
Sequential Performance R/W (MB/s) 540 / 340 540 / 450 540 / 450
Random Performance R/W (IOPS 4K) 91K / 82K 94K / 86K 94K / 86K
DDR3 Buffer 256MB 512MB 768MB
Power Consumption Active/Idle (W) 0.25 / 2.8 0.25 / 2.8 0.25 / 2.8
Operating Temperature 0-70° C 0-70° C 0-70° C
Non-Operating Temperature -40°-85° C -40°-85° C -40°-85° C
Shock 1,500G/0.5ms 1,500G/0.5ms 1,500G/0.5ms
Vibration (Operating) 7-800Hz. 2.17G (RMS) 7-800Hz. 2.17G (RMS) 7-800Hz. 2.17G (RMS)
MTBF (Million Hours) 2.4 2.4 2.4
Interface 2.5" SATA 6Gb/s 2.5" SATA 6Gb/s 2.5" SATA 6Gb/s
Connectors 15-pin SATA L Power, 7-pin SATA L Data 15-pin SATA L Power, 7-pin SATA L Data 15-pin SATA L Power, 7-pin SATA L Data
Dimension (mm) 69.85 x 100 x 7.0 69.85 x 100 x 7.0 69.85 x 100 x 7.0
Weight (grams) 70 70 70
Warranty (years) 3 3 3
MSRP $189.95 $319.95 $649.95
